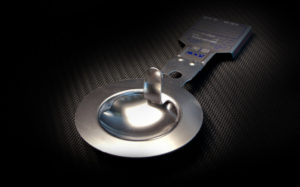

ZOOK – Reverse Acting Disks RA6 Series
- Designed for Non-fragmentation
- Scoreless design offers higher cycle life when compared to scored reverse acting disks
- Standard operating ratio of 90% of the marked rating on disk tag.May be extended to 95% of the minimum burst pressure. (Contact ZOOK for operating ratio on pressures below 40 psig)
- Certified for liquid, gas, or two-phase applications
- Standard manufacturing ranges of 0%, -5%, and -10% ensures marked
rating on disk tag does not exceed the MAWP of equipment - Withstands full vacuum without vacuum support
- Wide range of standard and exotic materials available
- Withstands back pressure up to the positive set pressure of the disk
- Sizes from 1″ (25mm) through 24″ (600mm)
- Burst ratings from 12 psi (0.83 barg) to 200 psig (13.97 barg)
- Resists product build-up. The smooth convex side of the disk is exposed to the process media
- Damage ratio of 1.0 or less
- Unique alignment pin design ensures proper disk orientation into RAH holder
- 3-dimensional stainless steel tag permanently engraved with complete disk specifications
- ASME UD, CE, and TUV compliance available
